Air Compressor

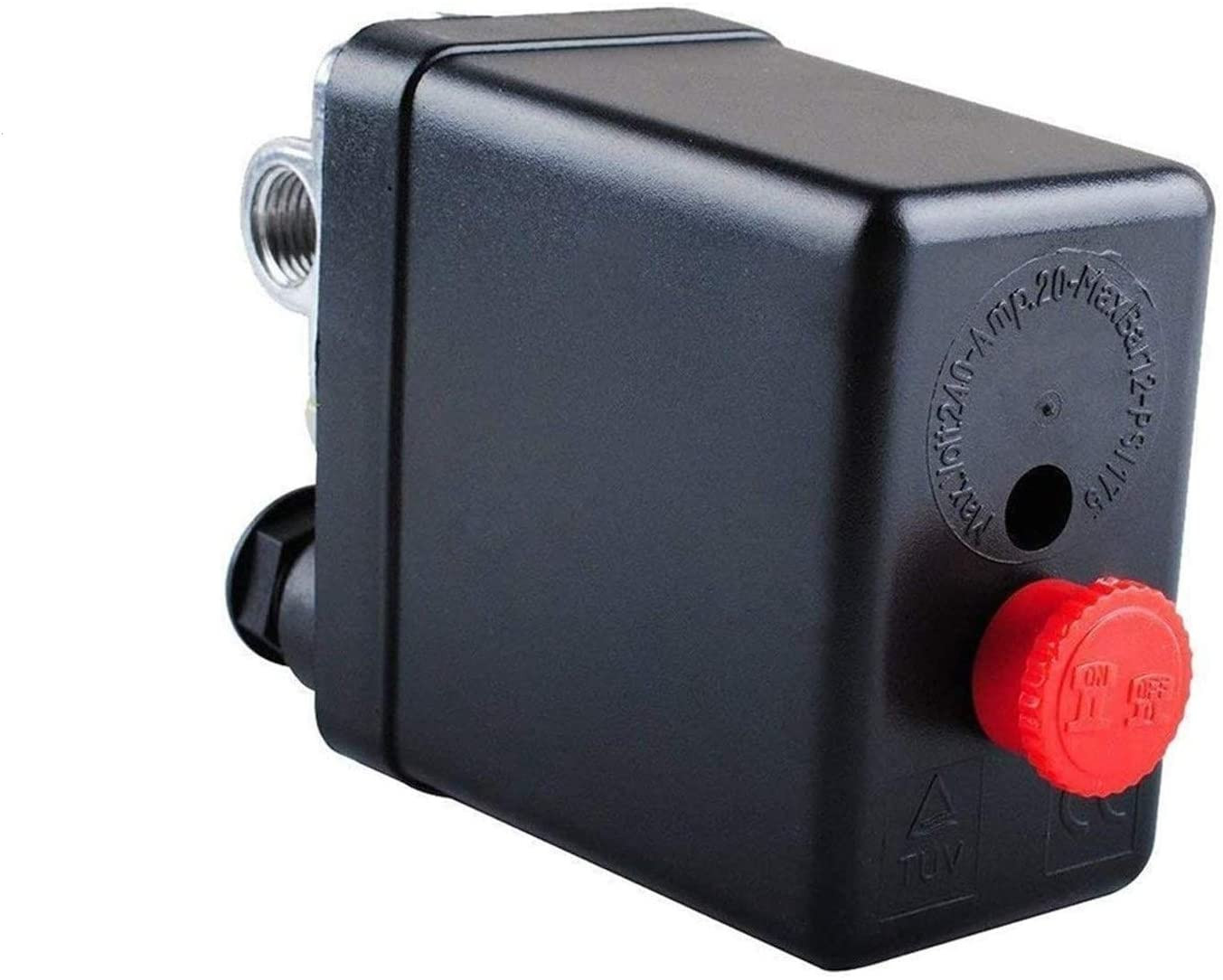

 This heavy-duty air compressor pressure switch is designed for reliable performance in demanding applications. With a pressure range of 40 to 150 PSI and a factory on/off setting of 120/150 PSI, it ensures consistent operation and protection for your air compressor system. The durable diaphragm actuation and DPST electrical contact form provide long-lasting use and stable switching under pressure.

Built with a strong polypropylene and thermoplastic resin cover, this switch is designed to withstand harsh conditions and wide temperature ranges. It features a 1/4" FNPS port connection, 1/4" compression unloader, and is rated up to 3 HP at 230V single phase or 5 HP at 240V three phase. Ideal for replacement or upgrade, this air compressor pressure switch offers dependable control and extended durability.

Key Features:

• Pressure range 40–150 PSI with factory on/off setting at 120/150 PSI

• Single 1/4" FNPS port with 1/4" compression unloader included

• Supports up to 3 HP at 230V single phase and 5 HP at 240V three phase

• Rugged construction with polypropylene and thermoplastic resin cover

• Wide operating temperature range from -33°F to 257°F

DetailsItemPressure SwitchPressure Switch ApplicationAir CompressorManual Switch ActionNonePressure Switch Port Type(1) Port, 1/4 in FNPSPressure Switch Factory On/Off Setting120/150 psiPressure Switch Unloader1/4 in CompressionPressure Switch Differential30 psiPressure Switch Range40 to 150 psiPressure Switch Electrical Contact FormDPSTStandardsANSI /NSF Standard 61, CSA Certified, FDA 21CFR.2600, NEC Article 430-84, UL 508Special FeaturesNitrile (Buna-N) DiaphragmTemp. Range-22 Degrees to 257 Degrees FAC Contact Rating10A @ 575VSeries9013FHGCircuit TypePower CircuitPhaseSingle/ThreeElectrical ConnectionScrew-Clamp TerminalsBurst Pressure220 psiActuation TypeDiaphragmIP RatingIP20 (IEC 60529)Unloader1/4 in Compression Unloader IncludedContact Form2NCDC Contact Rating1/4 HP @ 115VDC, 1/4 HP at 230VDCHP3 HP @ 230VTypeElectromechanical Pressure SwitchMaterialPolypropylene Cover; Noryl Thermoplastic Resin CoverProduct TypeAir Compressor SwitchPressure - Minimum70 psiOperating Temperature - Minimum-33 Degrees FHorsepower @ Single Phase - 240V AC3 hpHorsepower @ Three Phase - 240V AC5 hpPressure Connection Type1/4" FNPSOperating Temperature - Maximum257 Degrees FPressure Switch Action TypeStandardHorsepower @ Single Phase - 120V AC2 hpDifferential Pressure - Maximum30 psiMedia Temperature - Maximum257 Degrees FNumber of Pressure Connection Ports1Pressure - Maximum150 psiMedia Temperature - Minimum-33 Degrees FActuator StyleDiaphragmSwitch Function ConfigurationNoneNEMA Enclosure Rating1Horsepower @ Three Phase - 480V AC1 hpFactory On Setting120 psiFactory Off Setting150 psi
